Always On, Always Watching

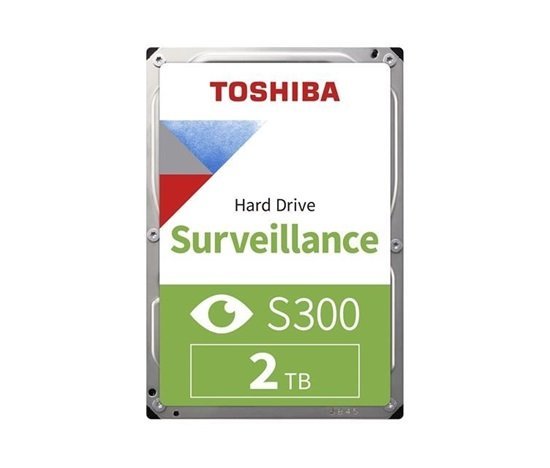

With surveillance systems, nothing but the best is good enough. The Toshiba 3.5-inch S300 is built to meet the highest demands. With support for up to 64 high-resolution surveillance video cameras simultaneiously and up to 6 TB capacity, it brings everything into clear view. Each S300 is built with the highest-quality components and has passed rigorous tests to ensure 24x7 reliability and performance. That‘s Toshiba quality you can trust under the harshest working conditions.
Use for
TECHNICAL SPECIFICATIONS
| Form factor | 3.5-inch |
| Interface | 6.0 Gbit/s |
| Number of cameras supported | 32 |
| Drive bays supported | up t 8 |
| Rotational Vibration (RV) Sensors | - |
| Shock Sensor | yes |
| Advanced Format (AF) | yes |
| RoHS compatible | yes |
| Halogen free | yes |
| Recording Technology | SMR |
| Performance | |
| Rotational speed (rpm) | 5400 |
| Max. data transfer speed (sustained MB/s Typ.) | 184 |
| Buffer size (MB) | 128 |
| Average latency (ms) | 5.56 |
| Reliability | |
| Workloads (TB/year) | 180 |
| MTTF (hours) | 1 000 000 |
| Unrecoverable error rate | 1 per 10^14 |
| 24 x 7 operation | yes |
| Load/Unload cycle | 600 000 |
| Limited warranty (years) | 3 |
| Power Management | |
| Supply voltage | 5 V DC ±5 % 12 V DC ±10 % |
| Consumption (operating) | 4.01 W typ. |
| Consumption (active idle) | 2.08 W typ. |
| Environmental | |
| Temperature (operating/non-operating) | 0 to 70 °C -40 to 70 °C |
| Vibration (operating) | 4.90 m/s2 {0.50 G} (5 to 350 Hz) 2.45 m/s2 {0.25 G} (350 to 500 Hz) |
| Vibration (non-operating) | 29.4 m/s2 {3.0 G} (5 to 500 Hz) |
| Shock (operating) | 686 m/s2 {70 G} (2 ms duration) |
| Shock (non-operating) | 3430 m/s2 {350 G} (2 ms duration) |
| Acoustics (idle mode) | 21 dB typ. |
| Physical | |
| Dimensions (L x W x H) | 147 x 101.85 x 26.1 mm |
| Weight | 440 g |
