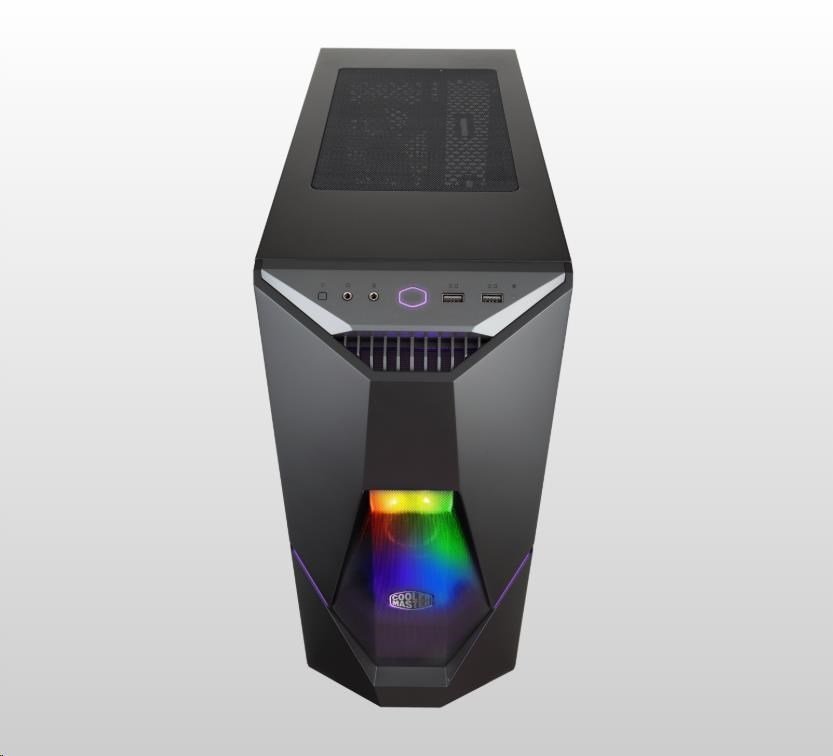

MASTERBOX K500 ARGB
NOT ALL MESH IS CREATED EQUAL.
The MasterBox K Series changed the case industry upon its launch. With an innovative mesh design that filters out dust, refracts light uniquely, and is easy to clean, the K500L set itself apart from the very beginning. Today, the same Fine Mesh spans numerous designs—in the latest Cooler Master cases and even imitated across the industry.
Intensively tested by reviewers, Cooler Master’s Fine Mesh proves to the world that providing airflow and dust filtration simultaneously can be achieved. Equal parts performance and aesthetics, the MasterBox K500 ARGB revamps the original K Series with vibrant, out-of-the-box lighting applied to game-changing airflow technology. Sometimes, it takes ingenuity to make a mesh.
The Fine Mesh design on the front panel is proven to provide proficient airflow while filtering out dust. Light also refracts and behaves uniquely to the Fine Mesh, creating a halo effect against illuminated components.
ARGB LIGHTING SYSTEM
Two pre-installed ARGB fans, illuminated accents on the front panel, and an illuminated power button can be managed by either the motherboard or an included controller to create a comprehensive ARGB lighting system.

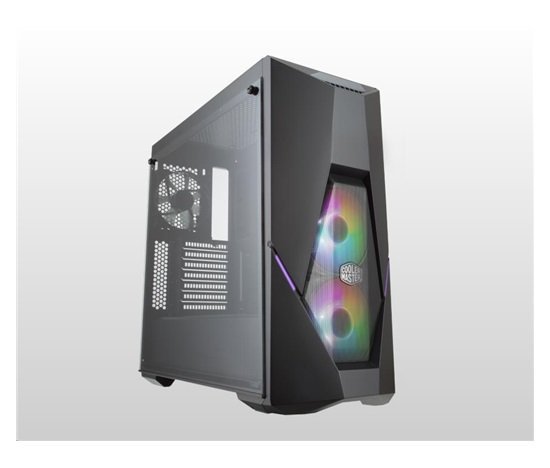

TEMPERED GLASS SIDE PANEL
Hardware, custom-loop cooling, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.
Airflow is optimized by a collaboration between the Fine Mesh front panel and top panel ventilation. Extra room is provided for optional fans and cooling components for future performance upgrades.
VERSATILE COOLING OPTIONS
Front:Three 120mm or two 140mm fans and up to a 280mm radiator.
Top: Two 120mm fans.
Rear: One 120mm fan or radiator.
All to ensure you don't have to compromise on performance.
MAIN COMPONENTS CLEARANCE
CPU Cooler height: 160mm
GPU length: 400mm
PSU length: 180mm
|Materials||Steel, Plastic, Tempered Glass|
|Dimension (L x W x H)||491 x 211 x 455 mm|
|Weight||6.2 kg / 13.66 lbs|
|Motherboard Support||Mini ITX, Micro ATX, ATX|
|5.25" Drive Bays||0|
|2.5"/3.5" Drive Bays (Combo)||2|
|2.5" Drive Bays||1 (Max. 6)|
|I/O Panel||2x USB 3.2 Gen 1 (formerly USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Controller, 1x ARGB 2-to-3 splitter|
|Pre-Installed Fans - Front||2x 120mm ARGB Fan|
|Pre-Installed Fans - Rear||1x 120mm (Black)|
|Fan Support - Top||2x 120mm|
|Fan Support - Front||3x 120mm, 2x 140mm|
|Fan Support - Rear||1x 120mm|
|Radiator Support - Front||120mm, 140mm, 240mm, 280mm|
|Radiator Support - Rear||120mm|
|Clearance - CPU Cooler||163mm/6.41"|
|Clearance - PSU||180mm|
|Clearance - GFX||400mm|
|Dust Filters||Top, Front, Bottom|
|Power Supply Support||Bottom mount, ATX|
